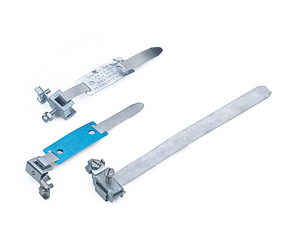

High quality earthing clamps specially designed to connect the pipes to conductor for earthing.
Special features:-
Designed & Manufactured under strict and approved quality control procedures, as per BS 951 standards.
Available in 2 Colours.:
Red for Non-corrosive dry atmosphere and Blue for corrosive humid conditions.
Available in 3 standard Band Lengths to suit
Pipe diameters of 12mm – 32mm, 32mm-50mm and 50mm-75mm
Available in 2 Terminal Sizes:
A-D for conductors of 2.5 mm2 – 10 mm2 and A-E for conductors of 2.5 mm2 - 16 mm2 (A-E being identified by its Blue safety label)
Terminal Size
Features
Material Spec.
Product Code
A-D 2.5 mm2- 10 mm2
Colour coded Red suitable for clean dry atmospheric conditions
Brass
HET 14
A-D 2.5 mm2- 10 mm2
Colour coded Blue suitable for all environment
Phosphorus Bronze
HET 15
A-D 2.5 mm2- 10 mm2
Colour coded Blue suitable for all environment
Phosphorus Bronze
HET 16
