"HEX" copper bonded earth rod are made from low carbon steel of grade BS 970 or AIS11018 with a high tensile strength of atleast 600 N/mm2 . Low carbon steel core are molecularly tended with 99.9% pure electrolytic copper.
Salient Features
Perfectly bonded rod will lost longer, drive easier and will not crack.
Corrosion resistance while providing tee lowest resistance to ground.
Threads are rolled by roll threading process, which ensures teat an wen copper covers is maintained, wen at the root of the thread. Roll thread gives greater strength than cut thread.

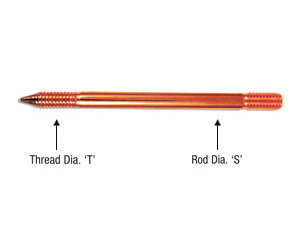

Thread rolling process raises the surface of the rod, so teat Thread dia. (T) is greater than Shank dia. (S).
DIMENSIONS ROD SIZE (DIA x LENGTH)
ACTUAL ROD DIA. 'S' in MM
THREAD DIA. 'T' in MM
PRODUCT CODE
9.5 x 1200 (UN-THREADED)
9.5
-
HBR 012
9.5 x 1800 (UN-THREADED)
9.5
-
HBR 018
14 x1200
12
14
HBR 1412
14 x1500
12
14
HBR 1415
14x1800
12
14
HBR 1418
14x2000
12
14
HBR 1420
14x2400
12
14
HBR 1424
5/8"x4'or16mm x1200
14.2
5/8''
HBR 112
5/8"x5'or16mm x1500
14.2
5/8''
HBR 115
5/8"x6'or16mm x1800
14.2
5/8''
HBR 118
5/8'' x 8'or 16 mm x 2400
14.2
5/8''
HBR 124
5/8'' x 10'or 16 mm x 3000
14.2
5/8''
HBR 130
5/8''x 4or16mm x1200
16
5/8''
HBR 312
5/8 x 5 or 16 mm x 1500
16
5/8''
HBR 315
5/8 x 6 or 16 mm x 1800
16
5/8''
HBR 318
3/4''x 4 or 19 mm x 1200
17.2
3/4''
HBR 212
3/4''x 5 or 19 mm x 1500
17.2
3/4''
HBR 215
3/4''x6 or 19mm x 1800
17.2
3/4''
HBR 218
3/4''x8 or 19mm x 2400
17.2
3/4''
HBR 224
3/4''x10 or 19 mm x 3000
17.2
3/4''
HBR 230
