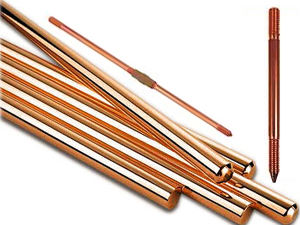

Conex Copper bonded plated coated Earth Rods Grounding earthing rods are made from high tensile-low carbon steel complying with requirements of BS 4360 Grade 43 A. Each rod is molecularly bonded by 99.99% pure, high conductivity copper bondings, each rod is treated with Benzol-triozole derivatives. Threads on rods are formed by roll threading process, giving threads extra strength, eliminating risk of chipping the threads while driving the rods in the ground.
Products Code
Rod Dimension (mm)
Diameter of Threads
Actual Rod Dia. (mm)
SER-1004
09.5 x 1200
unthreaded
9.5
SER
14.5 x 1200
9/16"
12.5
SER
14.5 x 1500
9/16"
12.5
SER
14.5 x 1800
9/16"
12.5
SER
16.0 x 1200
5/8"
14.2
SER
16.0 x 1500
5/8"
14.2
SER
16.0 x 2400
5/8"
14.2
SER
20.0 x 1200
3/4"
17.2
SER
20.0 x 1500
3/4"
17.2
SER
20.0 x 1800
3/4"
17.2
SER
20.0 x 2400
3/4"
17.2
SER
25.0 x 2400
unthreaded
25.4
SER
25.0 x 3000
unthreaded
25.4
Solid Copper Earth Rods
Copper solid Copper earth grounding earthing rods are made in two types. Externally threaded and internally threaded. Solid Copper earth rods are used where the factor of corrosion is very high and exceptionally long life is required. Hence these rods are manufactured from pure and high conductivity hard drawn copper to BS 2874-C 101. These rods are also available with tin plating in order to reduce the risk of oxidation and increasing shelf life.
Rod Details for Internal Threaded Solid Copper Earth Rods
Product Code
Rod Diameter
Rod Length
SSR-1604
16
1200
SSR-1605
16
1500
SSR-1204
20
1200
SSR-1205
20
1500
Earth Clamps
Conex manufactures a vast range of cast Earth Rod clamps in Naval Brass, Gunmetal and Aluminium.
Special castings and Brass Bronze Gun metal clamp from casting as per customer specifications can also be supplied. Earth Rod to tape clamps
Accommodates wide range of Copper / AI tape.
Earth Rod to Conductor Clamps
Available in light and heavy duty. Accommodates conductor size from 10 mm2 to 120 mm2.
